Concrete Cutters
CC 350
Concrete cutter for excavators of 2.5-5 tons (5,500-11,000 lb.)
Carrier weight class: 5,500 lb. – 11,000 lb.
Service weight: 710 lb.
Crushing force, jaw tip: 39,683 lb.
CC 650
Concrete cutter for excavators of 5-14 tons (11,000-30,900 lb.)
Carrier weight class: 11,000 lb. – 30,900 lb.
Service weight: 1,390 lb.
Crushing force, jaw tip: 99,200 lb.
CC 950
Concrete cutter for excavators of 9-16 tons (19,800-35,300 lb.)
Carrier weight class: 19,800 lb. – 35,300 lb.
Service weight: 2,030 lb.
Crushing force, jaw tip: 121,200 lb.
CC 1700 U
Concrete cutter for excavators of 15-25 tons (33,100-55,100 lb.)
Carrier weight class: 33,100 lb. – 55,100 lb.
Service weight: 4,190 lb.
Crushing force, jaw tip: 125,600 lb.
CC 2500 U
Concrete cutter for excavators of 22-35 tons (48,500-77,200 lb.)
Carrier weight class: 48,500 lb. – 77,200 lb.
Service weight: 6,260 lb.
Crushing force, jaw tip: 198,400 lb.
CC 3300 U
Concrete cutter for excavators of 30-50 tons (66,100-110,200 lb.)
Carrier weight class: 66,100 lb. – 110,200 lb.
Service weight: 7,670 lb.
Crushing force, jaw tip: 240,300 lb.
CC 5000 U
Concrete cutter for excavators of 45-65 tons (99,200-143,300 lb.)
Carrier weight class: 99,200 lb. – 143,300 lb.
Service weight: 11,100 lb.
Crushing force, jaw tip: 341,700 lb.
CC6000 U
Concrete cutter for excavators of 58-85 tons (127,900-187,400 lb.)
Carrier weight class: 127,900 lb. – 187,400 lb.
Service weight: 14,300 lb.
Crushing force, jaw tip: 396,800 lb.
CC 7000 U
Concrete cutter for excavators of 58-85 tons (127,900-187,400 lb.)
Carrier weight class: 127,900 lb. – 187,400 lb.
Service weight: 15,700 lb.
Crushing force, jaw tip: 341,700 lb.
Steel Cutters

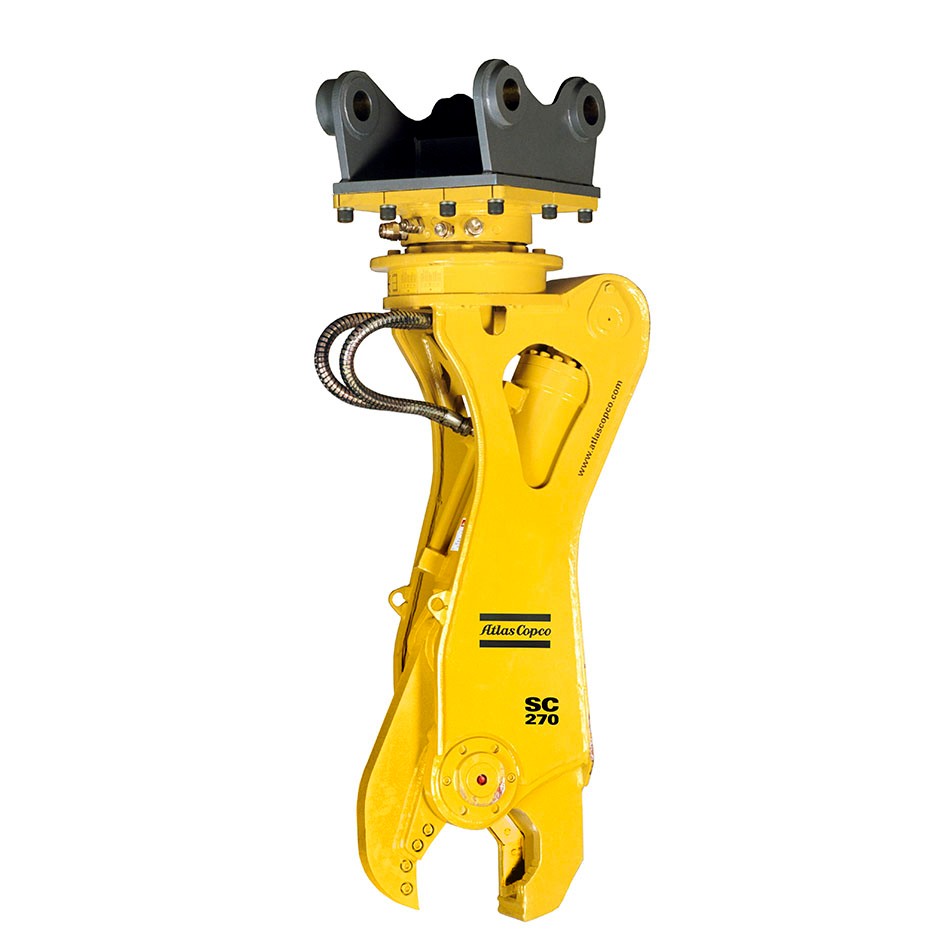

SC 270
Carrier weight: 8,800-11,000 lbs.
Max. cutting force: 79,300 lbs.
Cutting force, jaw tip: 79,300 lbs.
Operating pressure: 3,626 psi
Max. operating pressure, rotation: 1,450 psi
Jaw opening, max.: 7.3 Inches
Jaw depth: 6.3 Inches
Blade length: 6.3 Inches
SC 600
Carrier weight: 12,100-13,330 lbs.
Max. cutting force: 304,230 lbs.
Cutting force, jaw tip: 101,400 lbs.
Operating pressure: 4,350 psi
Max. operating pressure, rotation: 1,450psi
Jaw opening, max.: 9.6 Inches
Jaw depth: 9.4 Inches
Blade length: 9.4 Inches
Excavator Shears
SC 2500
For excavators of 16-35 tons, used in industrial demolition and scrapyards.
Carrier weight, boom mounted: 35,274 lb. – 66,139 lb.
Carrier weight, stick mounted: 46,297 lb. – 77,162 lb.
Service weight: 6,060 lb.
SC 3600
For excavators of 32-50 tons, used in industrial demolition and scrapyards.
Carrier weight, boom mounted: 44,100 lb. – 83,776 lb.
Carrier weight, stick mounted: 70,548 lb. – 110,231 lb.
Service weight: 8,880 lb.
SC4500
For excavators of 25-60 tons, used in industrial demolition and scrapyards.
Carrier weight, boom mounted: 55,100 lb. – 121,250 lb.
Carrier weight, stick mounted: 83,776 lb. – 132,277 lb.
Service weight: 10,760 lb.
SC 6200
For excavators of 30-75 tons, used in industrial demolition and scrapyards.
Carrier weight, boom mounted: 66,139 lb. – 121,254 lb.
Carrier weight, stick mounted: 110,231 lb. – 165,347 lb.
Service weight: 15,120 lb.
SC 8300
For excavators of 45-110 tons, used in industrial demolition and scrapyards.
Carrier weight, boom mounted: 99,200 lb. – 143,300 lb.
Carrier weight, stick mounted: 143,300 lb. – 242,500 lb.
Service weight: 19,970 lb.
Drum Cutters
DC 200
Drum cutter for excavators of 1-3 tons (2,200-6,600 lb.)
Carrier weight class: 2,200 lb. – 6,600 lb.
Service weight: 440 lb.
Max. operating pressure: 5,075 psi
Pick speed: 1.5 m/s – 3 m/s
Max. cutting force: 2,835 lb.
Diameter of cutter drum: 10 inches
DC 400
Drum cutter for excavators of 3-7 tons (6,600-17,500 lb.)
Carrier weight class: 6,600 lb. – 17,500 lb.
Service weight: 880 lb.
Max. operating pressure: 5,075 psi
Pick speed: 1.5 m/s – 2.7 m/s
Max. cutting force: 4,000 lb.
Diameter of cutter drum: 15 inches
DC 600
Drum cutter for excavators of 8-15 tons (17,500-33,000 lb.)
Carrier weight class: 17,500 lb. – 33,000 lb.
Service weight: 1,330 lb.
Max. operating pressure: 5,075 psi
Pick speed: 1.7 m/s – 2.8 m/s
Max. cutting force: 5,845 lb.
Diameter of cutter drum: 18 inches
DC 1000
Drum cutter for excavators of 10-18 tons (22,000-40,000 lb.)
Carrier weight class: 22,000 lb. – 40,000 lb.
Service weight: 2,200 lb.
Max. operating pressure: 5,075 psi
Pick speed: 1.8 m/s – 2.7 m/s
Max. cutting force: 8,140 lb.
Diameter of cutter drum: 23 inches
DC 1200
Drum cutter for excavators of 15-23 tons (33,000-55,000 lb.)
Carrier weight class: 33,000 lb. – 55,000 lb.
Service weight: 2,650 lb.
Max. operating pressure: 5,075 psi
Pick speed: 1.8 m/s – 3.3 m/s
Max. cutting force: 10,950 lb.
Diameter of cutter drum: 23 inches
DC 2000
Drum cutter for excavators of 20-35 tons (44,000-77,000 lb.)
Carrier weight class: 44,000 lb. – 77,000 lb.
Service weight: 4,400 lb.
Max. operating pressure: 5,075 psi
Pick speed: 2.1 m/s – 3.6 m/s
Max. cutting force: 11,735 lb.
Diameter of cutter drum: 28 inches

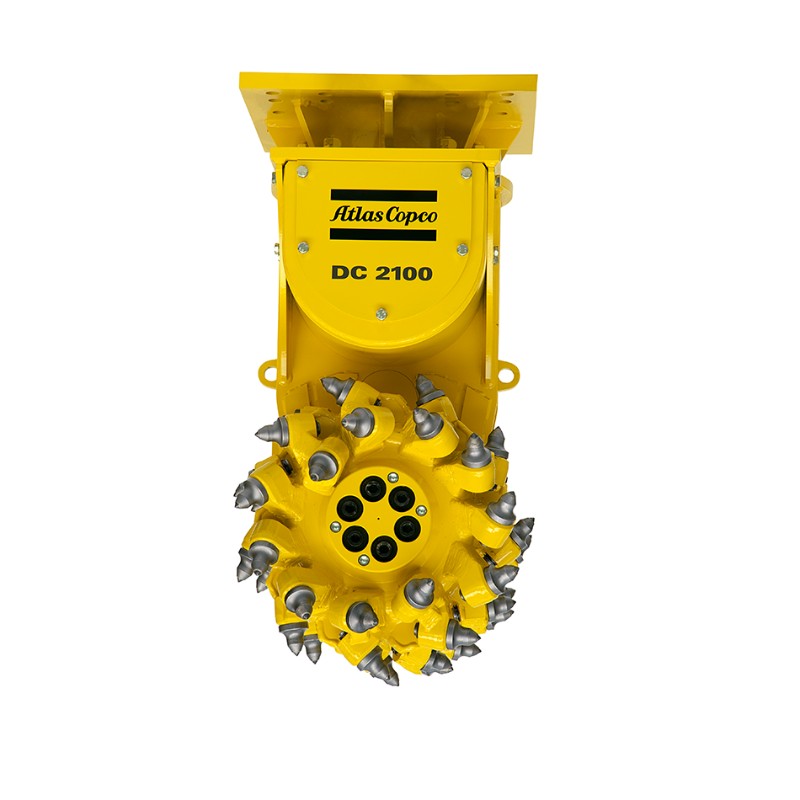

DC 2100
Drum cutter for excavators of 25-40 tons (55,000-88,000 lb.)
Carrier weight class: 55,000 lb. – 88,000 lb.
Service weight: 4,630 lb.
Max. operating pressure: 5,075 psi
Pick speed: 1.6 m/s – 2.7 m/s
Max. cutting force: 15,715 lb.
Diameter of cutter drum: 28 inches
DC 2900
Drum cutter for excavators of 35-50 tons (77,000-120,000 lb.)
Carrier weight class: 77,000 lb. – 120,000 lb.
Service weight: 6,400 lb.
Max. operating pressure: 5,075 psi
Pick speed: 2 m/s – 2.9 m/s
Max. cutting force: 18,390 lb.
Diameter of cutter drum: 27 inches
